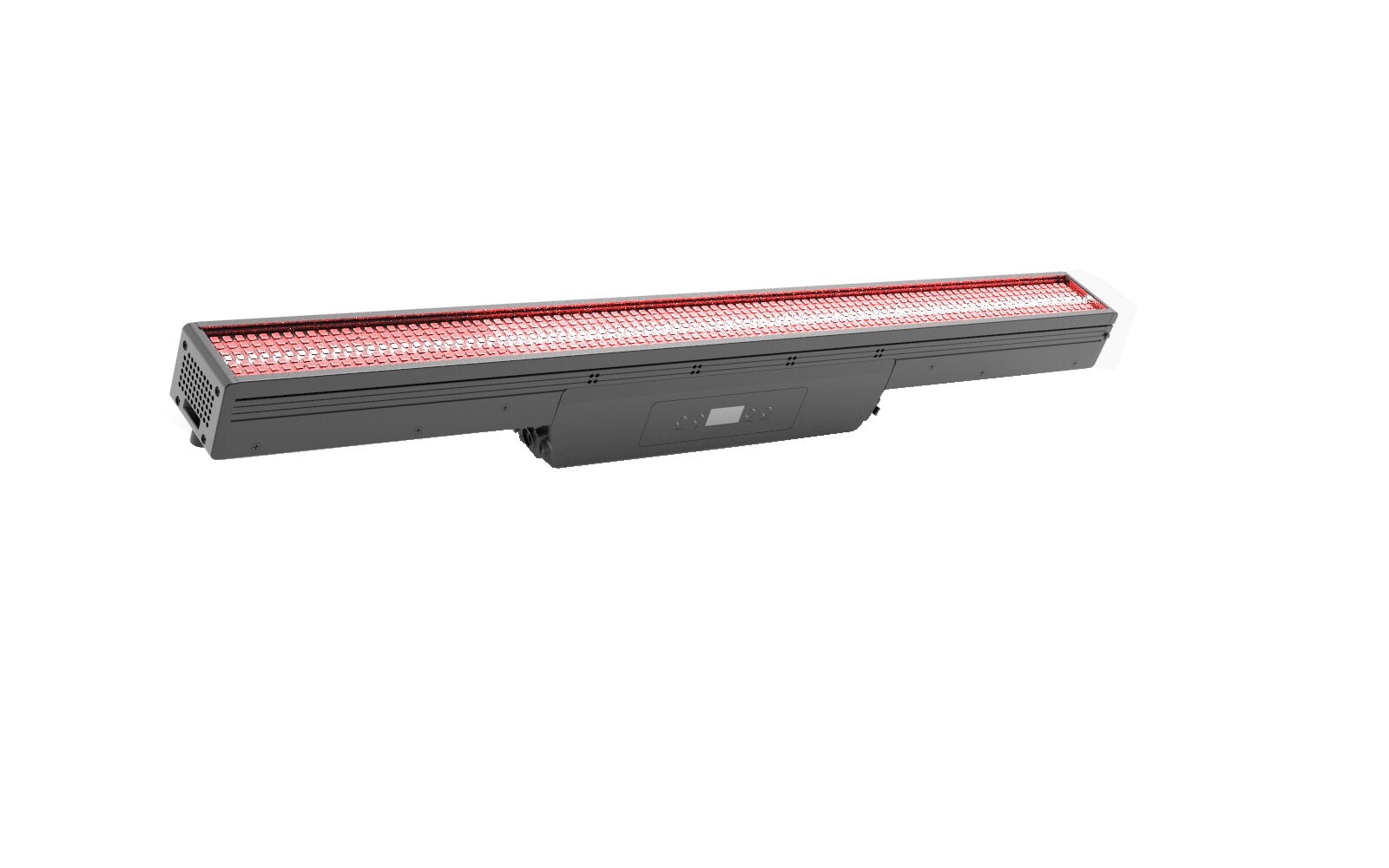

Model: STB1632
Optics & Effects
White pixel control: 16 segments | Color pixel control: 32 segments
Electronic strobe: 0–20Hz | 4 dimming curves | 0–100% linear dimming
Adjustable refresh rate: 600Hz–25kHz, ideal for high‑speed camera applications
Control & Connectivity
Protocols: DMX512, RDM, Art‑Net
DMX channel modes: 7 / 15 / 21 / 39 / 112 / 17 / 33 / 65 / 68 / 117 / 70 CH
Signal connections: Waterproof 3‑pin XLR input/output + waterproof Ethernet port (Art‑Net)
Display: OLED screen for intuitive operation
Construction & Electrical
Protection rating: IP65, suitable for all‑weather outdoor use
Housing: Die‑cast magnesium‑aluminum alloy, black finish
Input voltage: AC 100–240V, 50/60Hz
Power consumption: 400W (full bright) / 700W (strobe)

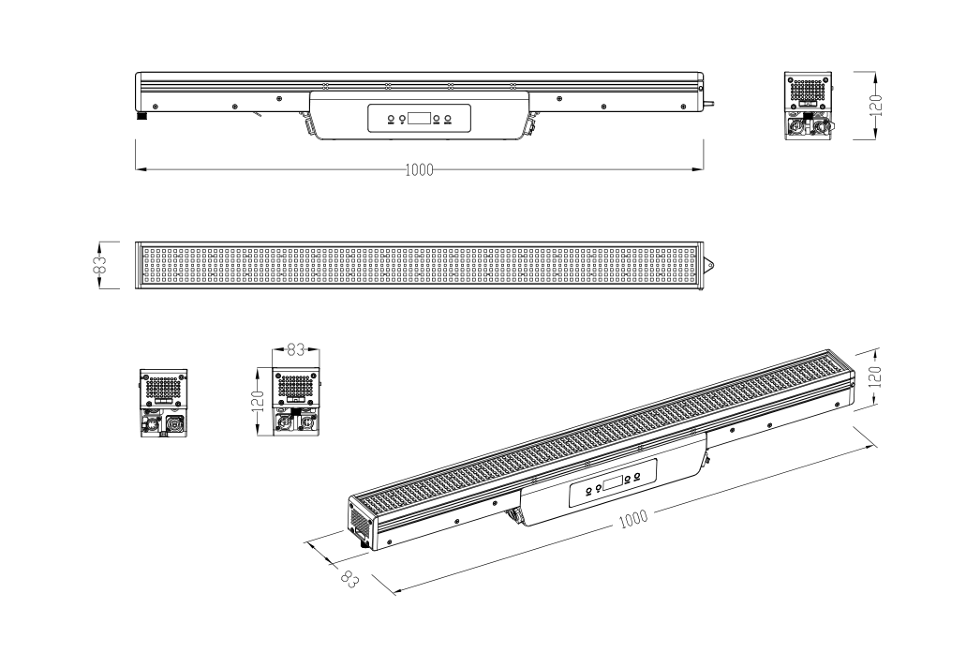

Dimensions: 1000 × 120 × 83 mm | Net weight: 7.1 kg
Cooling: Waterproof low‑noise fan with forced convection
Ideal for large‑scale stages, outdoor events, TV studios, and architectural lighting applications
