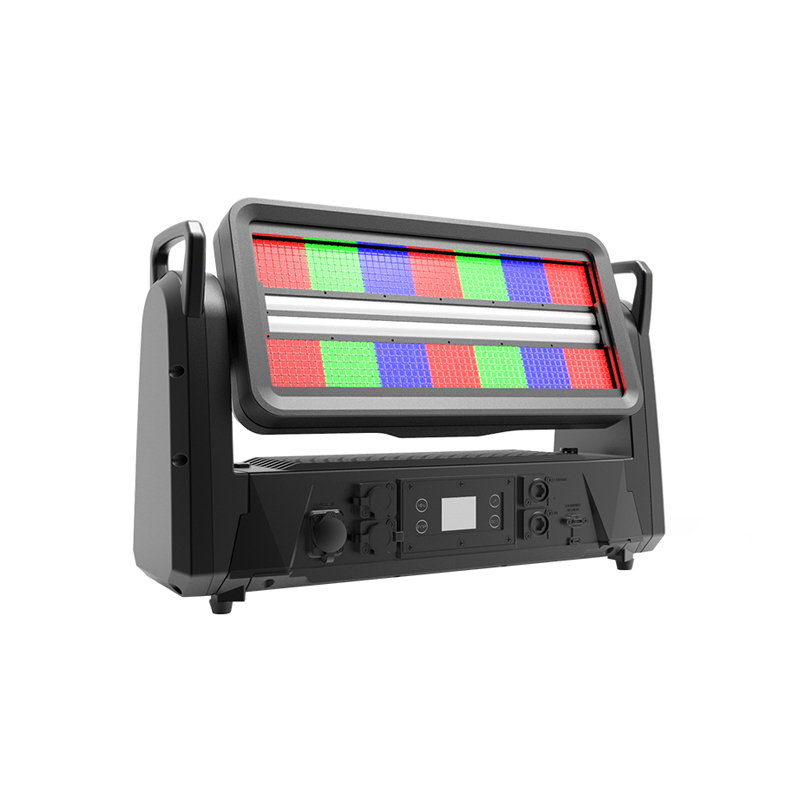

Photon Strike M Thunder LED Full Spectrum Tilt Moving Strobe

Light Source

• Strobe LEDs: 392 × 1.5W cool white LEDs

• Color LEDs: 784 × 0.8W RGB 3-in-1 LEDs

• Average lifespan: 50,000 hours

• Beam angle: 117°

• Color temperature: 6,000K (white) / 2,700K–8,000K adjustable

• Total light output: 72,600 lm

• Wavelength: R: 623nm / G: 525nm / B: 455nm

Main Features

• Uniform RGBW color mixing system

• Fast electronic strobe: 1–20 Hz

• Refresh frequency: 600–25,000 Hz

• 4 dimming curve options

• Pixel matrix: 28‑segment strobe white + 14‑segment RGB independently controllable

• Vertical tilt range: 180°

• Intelligent temperature protection

• IP65 waterproof rating, suitable for outdoor use

• Compact and lightweight for easy installation

Control

• DMX channels: 8 / 11 / 13 / 24 / 30 / 70 / 97 CH

• Control modes: DMX512, RDM, Art‑Net

• RDM: bidirectional communication

• Display: 1.77‑inch TFT screen

• Signal connection: 3‑pin / 5‑pin XLR input & output, Art‑Net support

Electrical & Physical

• Input voltage: AC 100V–240V, 50/60Hz

• Strobe power: 1,250W

• Machine power: 720W

• Dimensions: 494 × 316 × 160 mm

• Net weight: 12.2 kg

• Housing: Aluminum alloy with forced convection cooling (low‑noise, waterproof fan)

• Protection rating: IP65

• Operating temperature: –20°C to 40°C

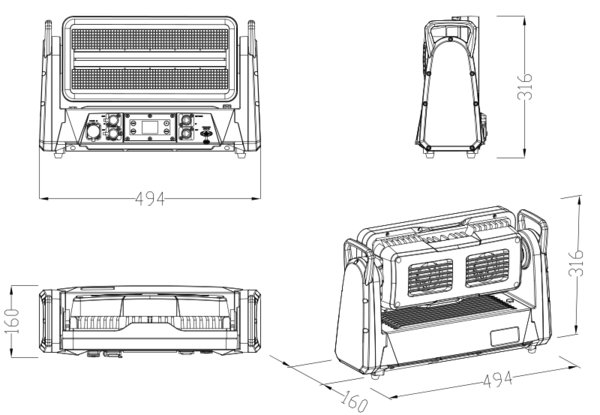

Dimension （mm）
