Abstract

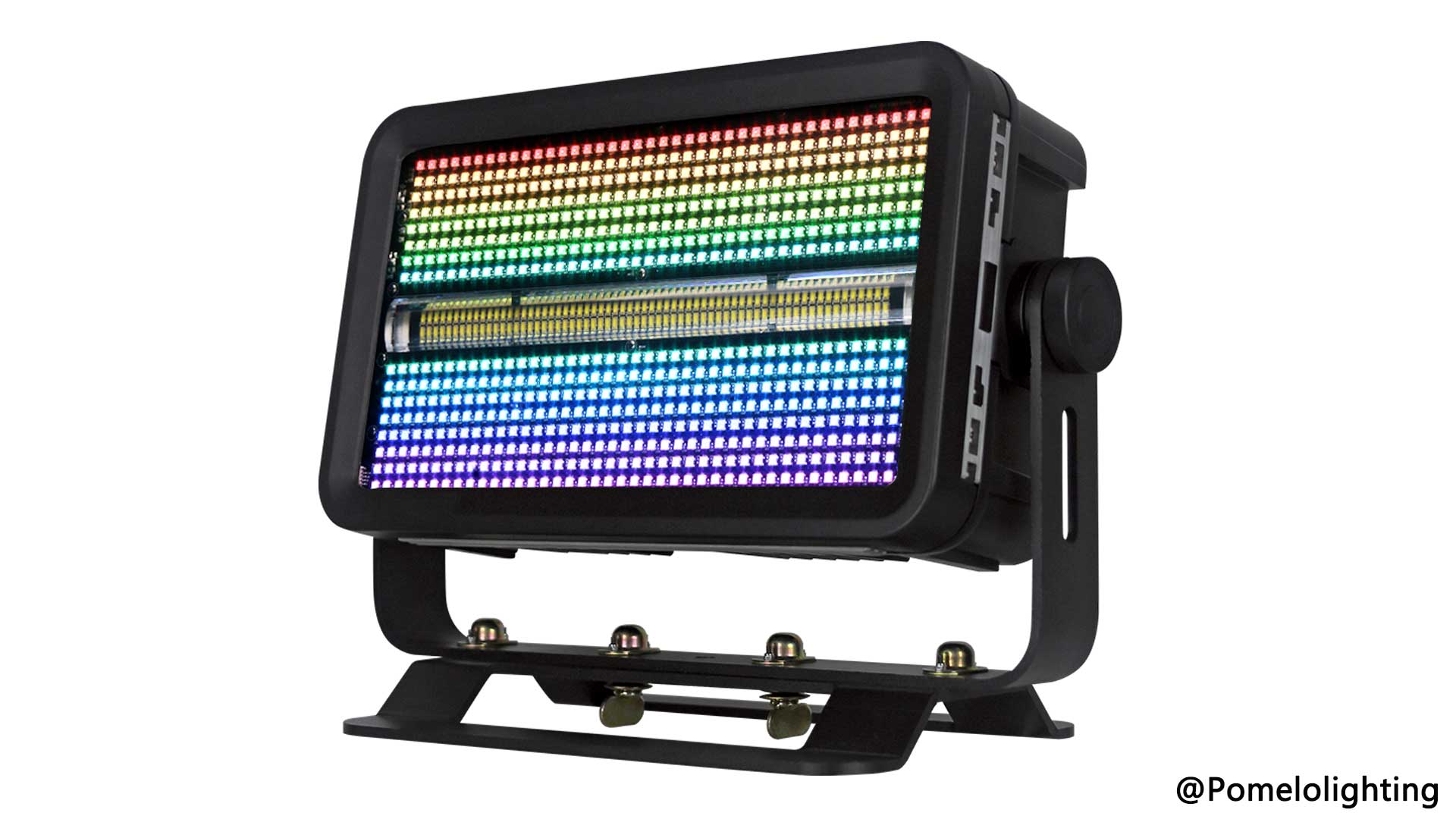

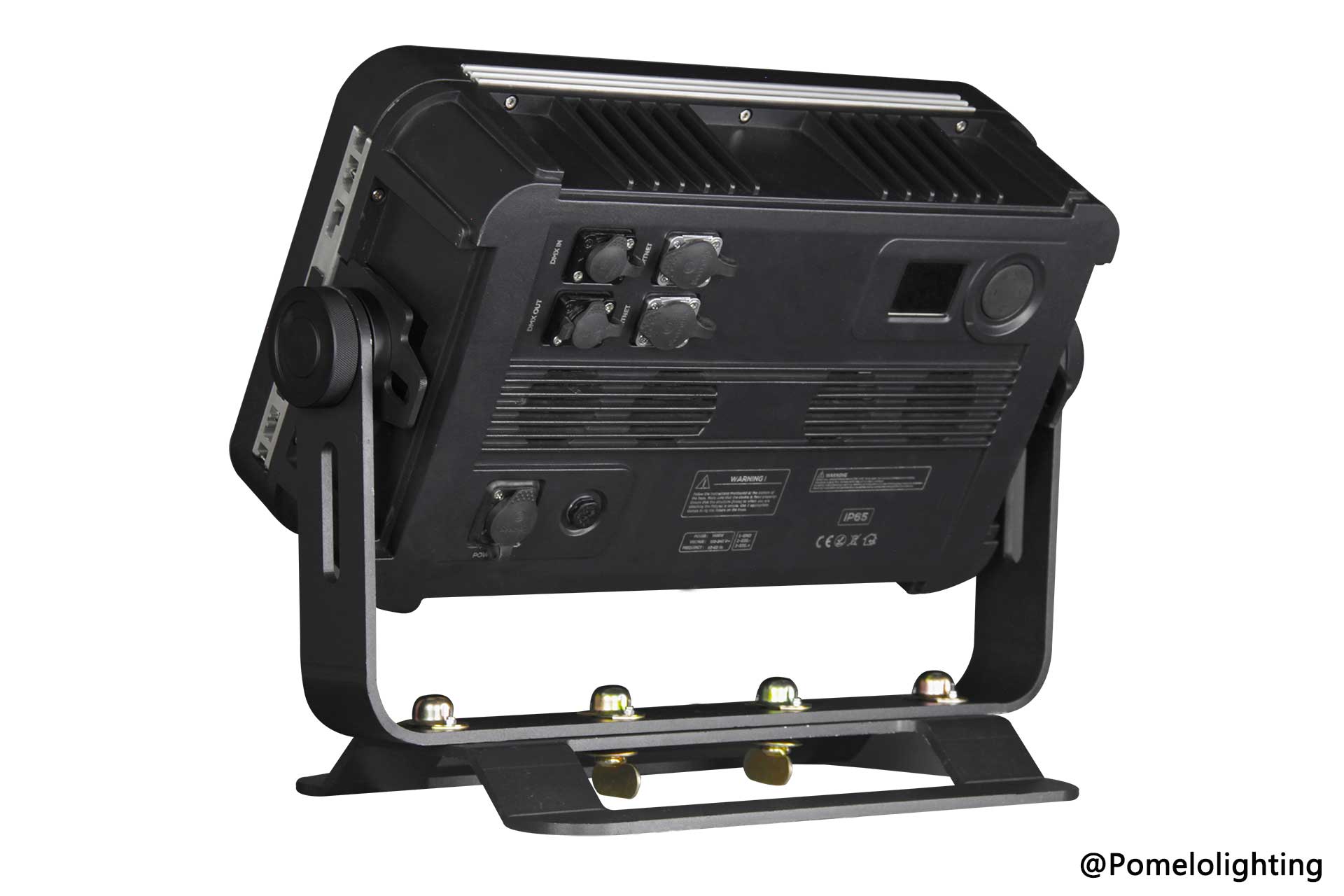

STPX from Pomelo represents a whole new class of waterproof of strobe lighting, IP 65 with full die-casting aluminum housing. In order to ensure the stability of the LED beads, it adopts 4 sets of intelligent speed regulating fans to actively dissipate heat. It may be placed upright with a base on a level surface or suspended from a suitable structure. And safety ropes can be installed on both sides of the handle for safety.
Strobe lighting was first widely used in concerts and other large-scale performances, mainly to match the scene atmosphere when the dazzling lights erupted, making people dizzy and shocking. This determines that the high probability of strobe lights showing with audience blinder effect, but less showing with a strobe effect.
STPX will refresh the majority’s memory of strobe lighting due to its high usage. STPX ensures the function of constant light(always bright at full power) as well as the instantaneous output of strobe light. When STPX does not strobe, it can be used as an audience blinder, which enhances the background effect on the spot.
Characteristic of STPX

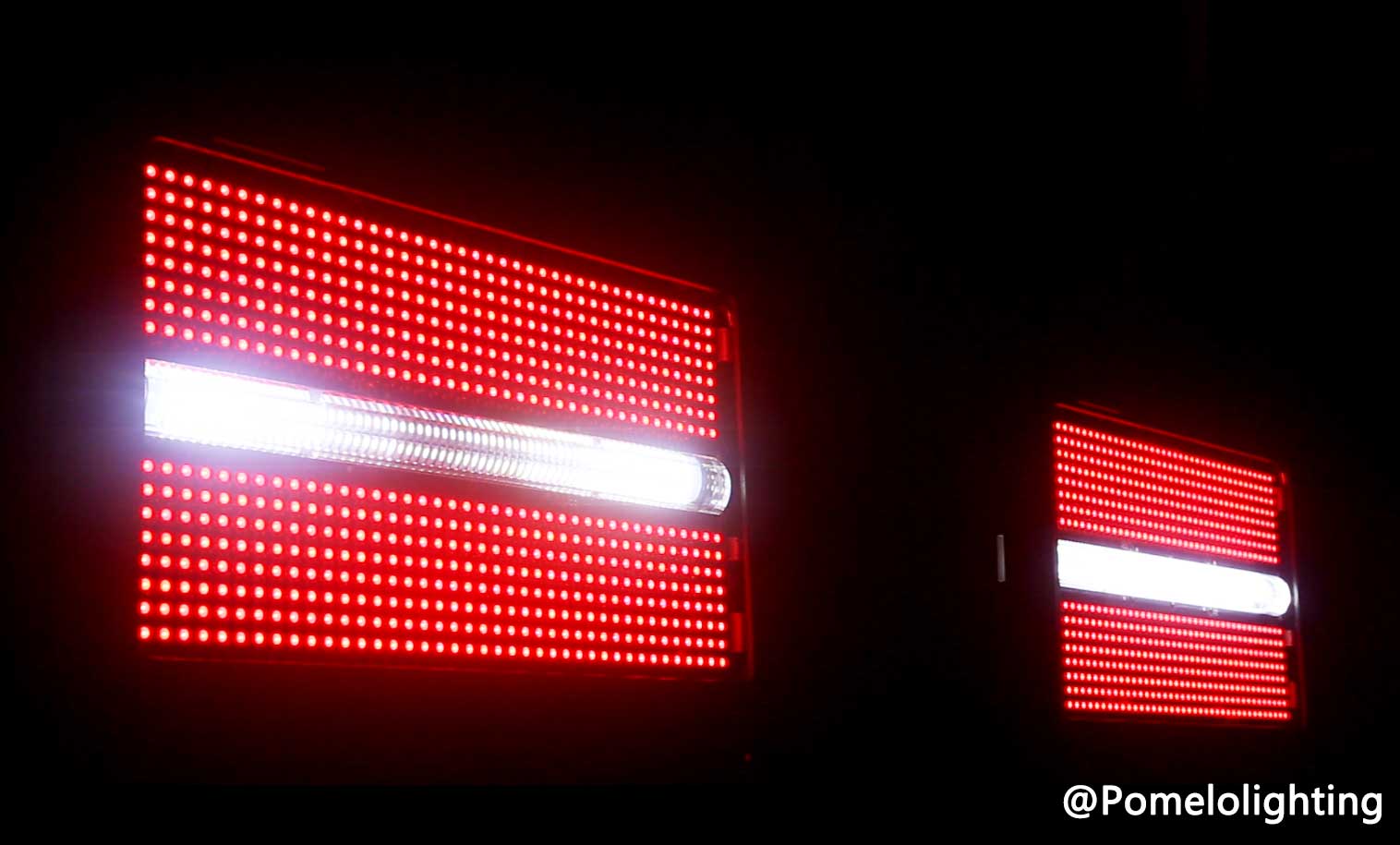

This outburst power on the cool white tube is based on 192pcs (3W) high-quality RGB LEDs. And the strobe tube can be split into 8 segments with individual control and two-way color change effect. STPX is independently powered by an 850W power supply to ensure the operation of the LED beads in the white tube.
It is not an exaggeration to say that the instantaneous peak output luminous flux of the strobe can reach 290,000 lm, and the white illumination can reach 3500 LUX at a distance of 5 meters(ONLY Refer to STP1400). In terms of the strobe divergence angle of the white tube, it can be limited at 60°and with a wide projection range. There are 12 built-in strobe modes, from slow to fast, up to 25 HZ on strobe frequency.
And the color panels adopt 640pcs(0.5W) RGB LED beads, and the whole array can be fully pixel mapped through MADRIX. There are built-in multiple pattern macro and rich color macro.
There are three protocol conversion modules built-in: DMX, RDM, and Art-Net. It can work without external equipment.
Summary
In short, STPX guarantees the professional functions of strobe, including brightness, strobe mode, frequency, and explosiveness. It has a good performance and has a background effect of color patterns. It has strong competitiveness in similar products. Three points: waterproof, professional strobe, background effects.
Recommendation

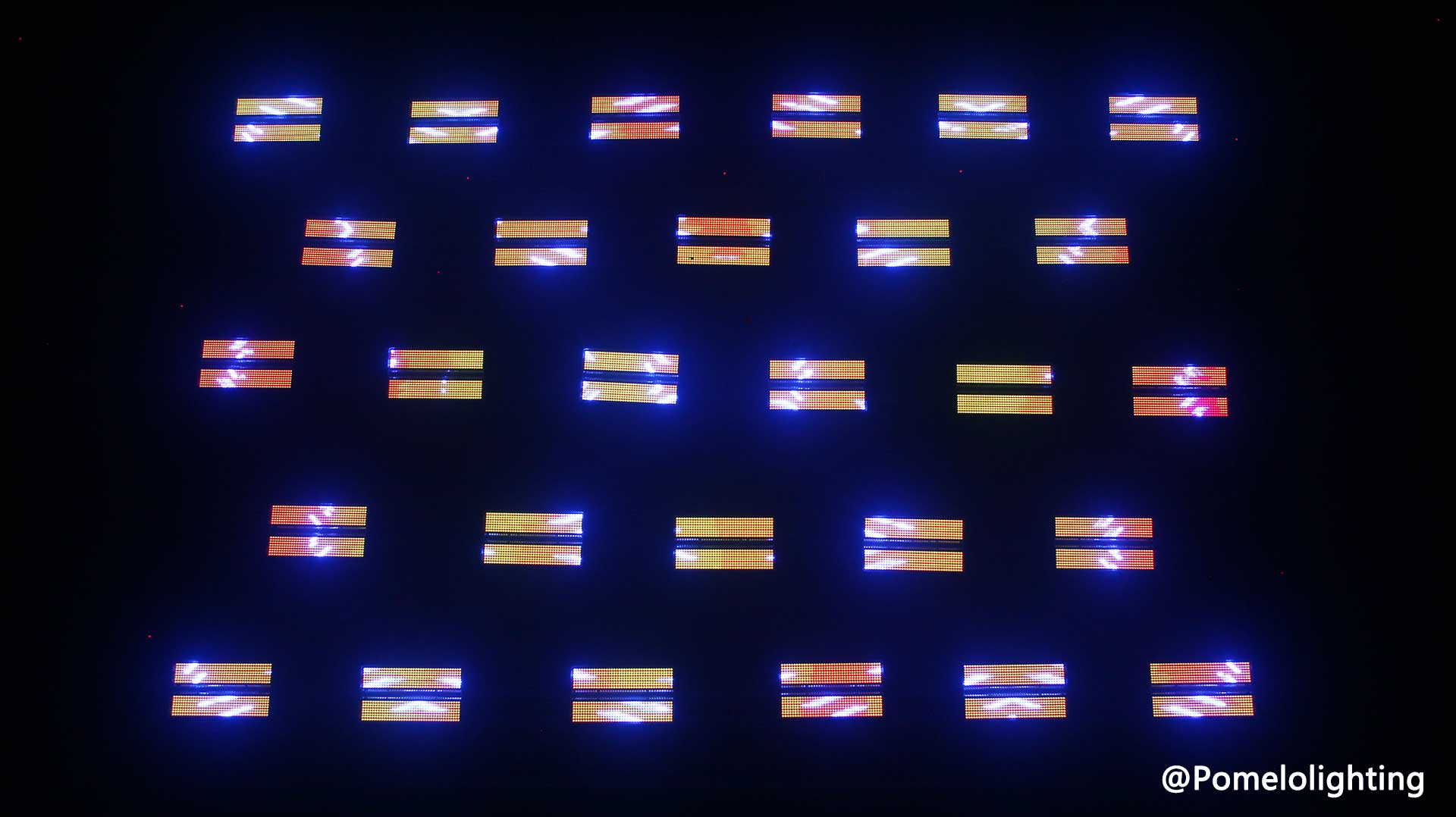

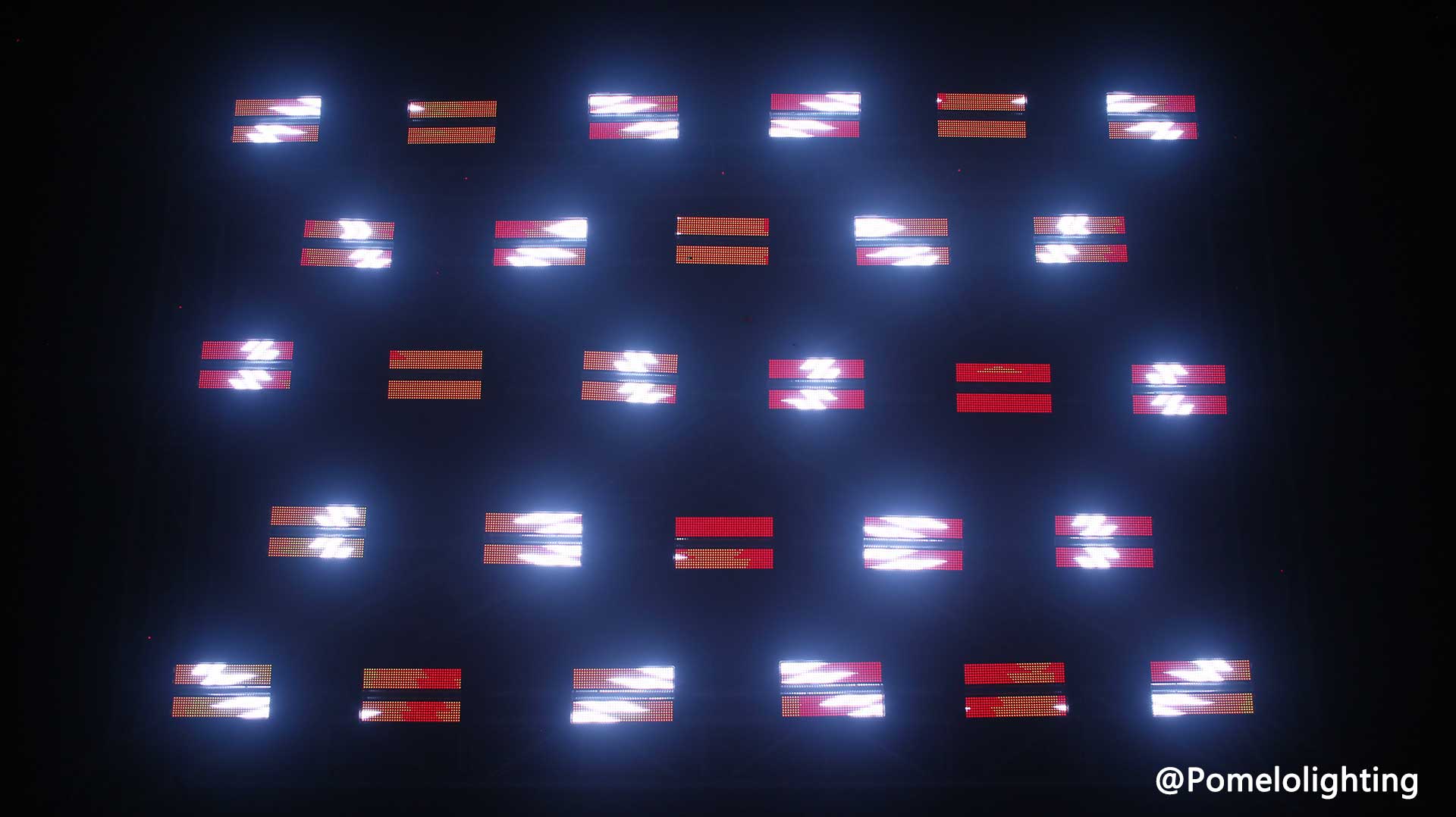

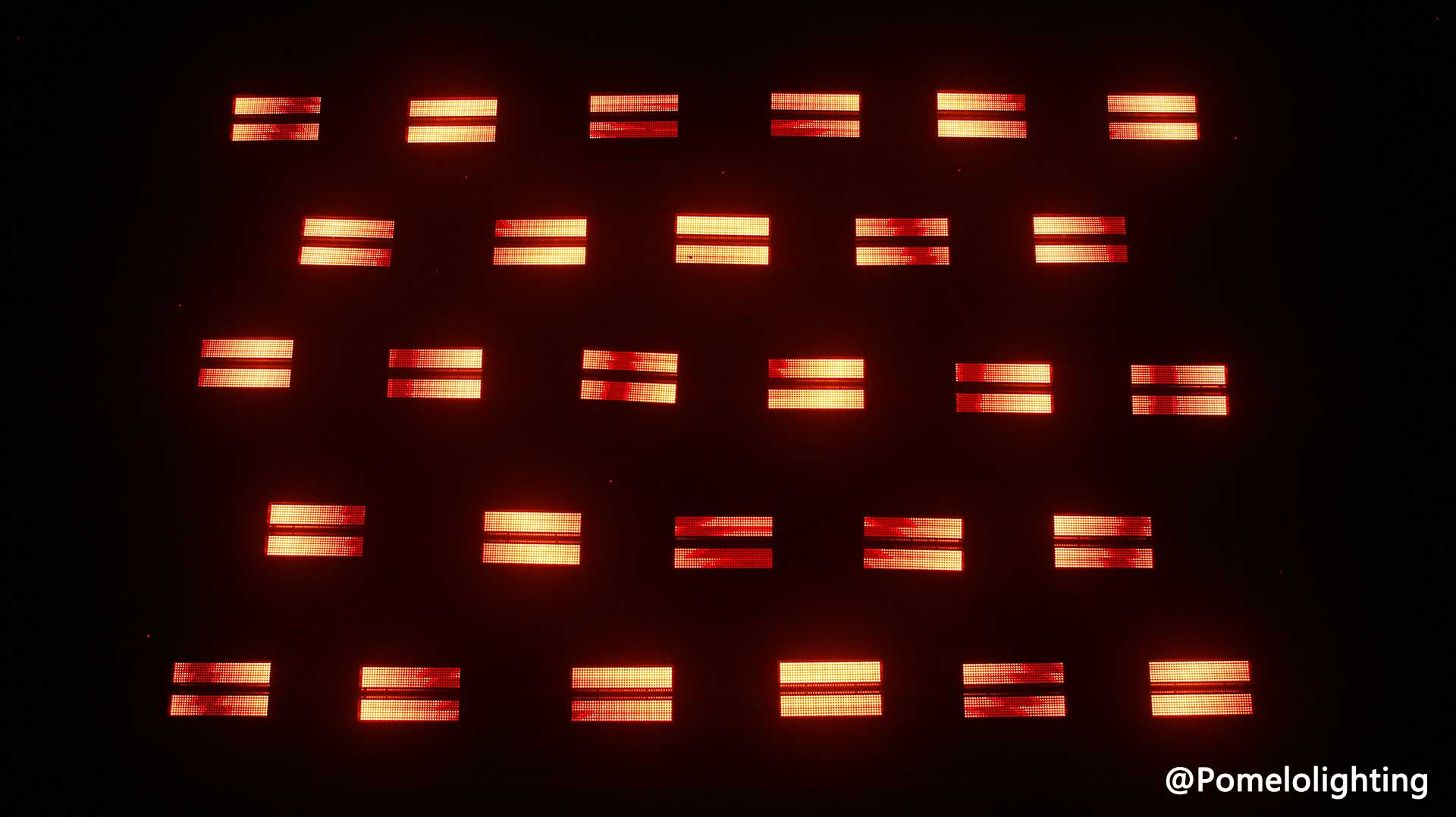

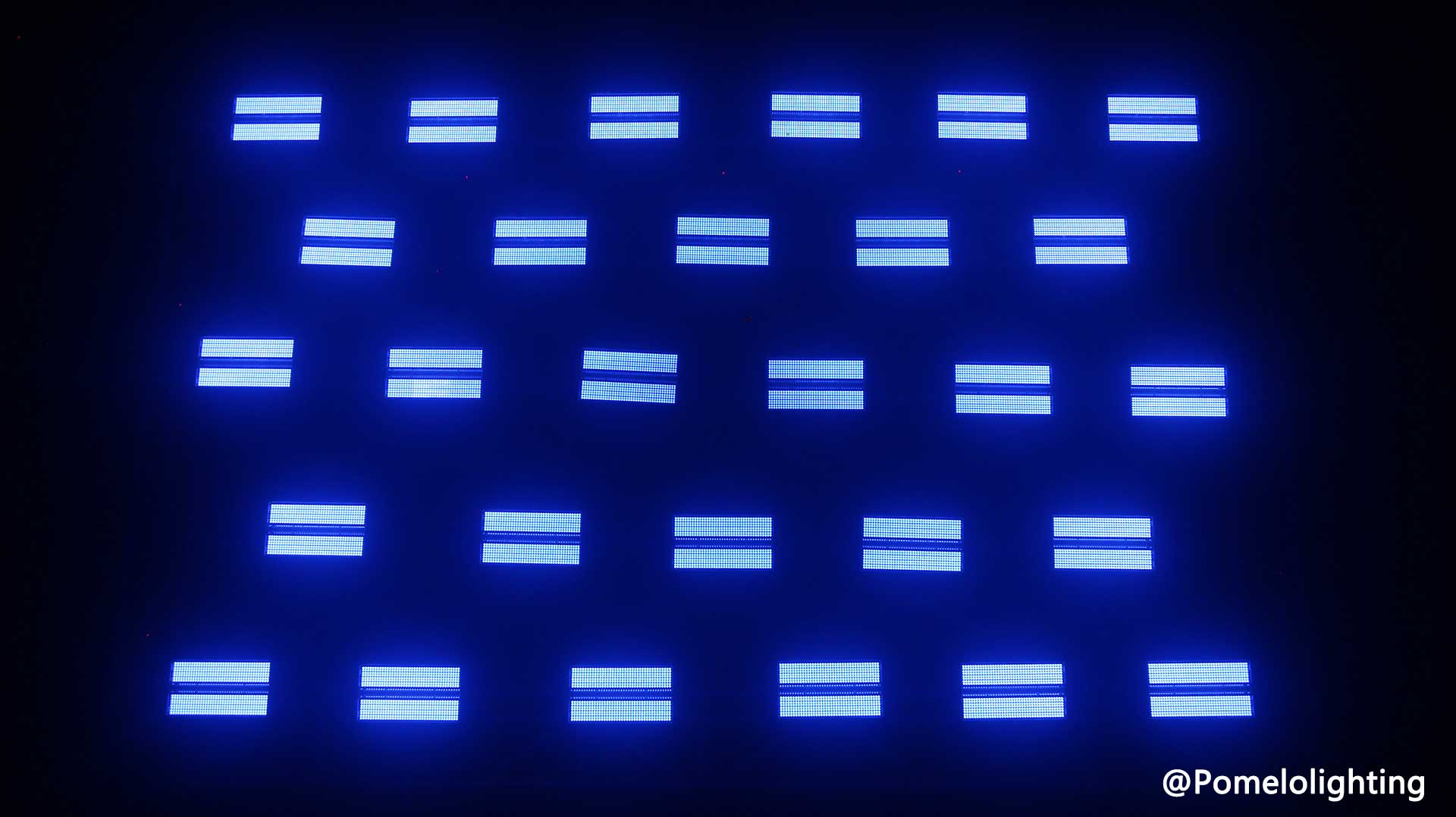

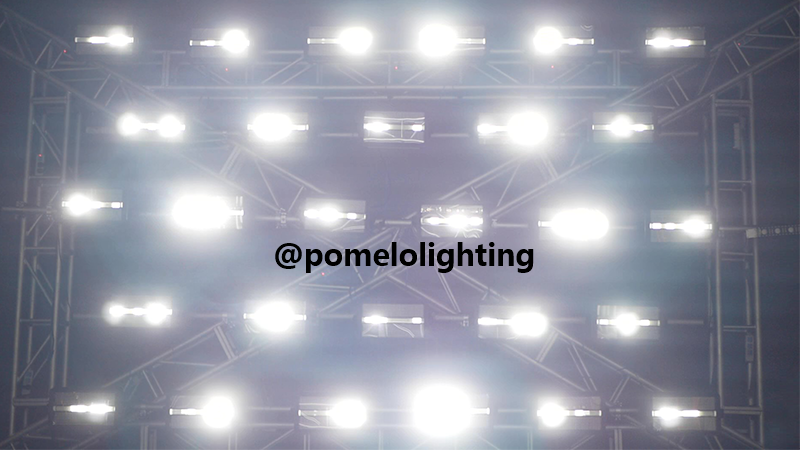

1. STPX can be greatly applied with matrix arrangement to both indoor&outdoor events, as well as large-scale bars.
2. Its effects of pattern and the color macro also suitable on MINI show, emphasizing the background pattern stitching and color application.
3. And it can be used the flowing rainbow effect with line array arrangement when places high above the ground(more than 30meters)
Parameter
Input Voltage: 110-240V 50-60HZ
Strobe: Electronic, 30HZ (Maximum)
Power Consumption: 850W
Light Source: 640x0.5W RGB 3in1 Leds(Panel) 192x3W 6500K White LEDs(Tube)
Control Mode: DMX512/RDM/ART-NET/Master-Slave/Auto
DMX Channels: 14CH/21CH/42CH
Weight: 18kg
